When particle size directly affects product performance, conventional grinding equipment often reaches its limit.
Manufacturers producing lithium battery materials, nano pigments, ceramic inks, electronic pastes, and specialty chemicals need more than simple milling. They need precise particle control, stable temperature management, and consistent dispersion quality.

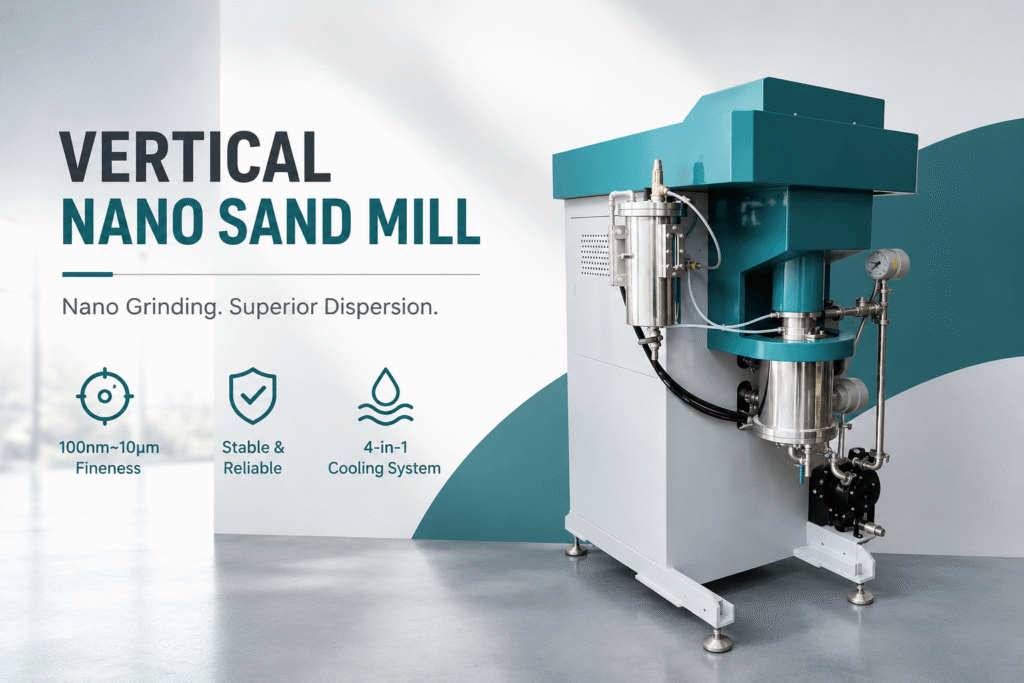

The Vertical Nano Sand Mill is specifically designed to meet these requirements, delivering ultra-fine grinding performance while maintaining production stability and product consistency.
Why Particle Size Matters in Modern Manufacturing
Many advanced materials rely on extremely fine particle distribution.
If particles remain too large or unevenly dispersed, manufacturers may encounter:
- Reduced product performance
- Poor suspension stability
- Inconsistent color development
- Lower conductivity
- Surface defects
- Reduced storage life
For industries such as lithium batteries, electronic materials, and nano coatings, even small variations can impact final product quality.
That’s why ultra-fine grinding has become a critical production step.
Designed for Nano-Level Processing
The Vertical Nano Sand Mill is capable of achieving grinding fineness from:
100nm to 10μm
Its optimized grinding chamber utilizes high-density zirconia beads and high-energy rotor technology to generate strong shear force and impact energy.
This allows agglomerated particles to be rapidly broken down into a more uniform particle size distribution.
The result is:
- Better dispersion quality
- Improved product stability
- Enhanced production efficiency
- Consistent batch performance
Pin-Type and Turbine Grinding Technology
Different materials require different grinding characteristics.
This machine supports both:
Pin-Type Rotor
Designed for high-energy grinding applications requiring extremely fine particle sizes.
Suitable for:
- Battery slurry
- Nano pigments
- Electronic materials
- Specialty coatings
Turbine Rotor
Provides stable circulation and efficient energy transfer.
Ideal for:
- Printing inks
- Ceramic inks
- Chemical suspensions
- Fine chemical products
The flexible grinding configuration allows manufacturers to select the most suitable setup for their process requirements.
Advanced Cooling for Heat-Sensitive Materials
Heat generation is one of the biggest challenges during nano grinding.
Excessive temperature can affect:
- Product stability
- Chemical properties
- Viscosity
- Color performance
- Material activity
To solve this issue, the Vertical Nano Sand Mill incorporates a 4-in-1 cooling system covering:
- Grinding chamber
- Chamber cover
- Mechanical seal
- Main shaft
This integrated cooling design helps maintain stable operating temperatures even during long production cycles.
Reliable Operation with Minimal Maintenance
Production downtime is expensive.
The machine adopts a double mechanical seal design to ensure:
- Stable operation
- Reduced leakage risk
- Longer service life
- Lower maintenance requirements
Wear-resistant contact materials such as zirconia, silicon carbide, and polyurethane are also available for different process conditions.
This helps improve durability while reducing long-term operating costs.
Ideal Applications
The Vertical Nano Sand Mill is widely used in:
Lithium Battery Materials
Achieving uniform particle distribution for electrode slurry production.
Nano Pigments
Improving color strength, brightness, and dispersion quality.
Printing and Ceramic Inks
Producing stable formulations with consistent particle size.
Electronic Pastes
Supporting advanced electronic and conductive material manufacturing.
Fine Chemicals
Providing reliable grinding performance for specialty formulations.
Cosmetic Raw Materials
Enhancing texture, stability, and ingredient dispersion.
Technical Specifications
| Item | Specification |
|---|---|
| Model Range | 1L – 90L |
| Grinding Fineness | 100nm – 10μm |
| Applicable Viscosity | 2000 – 60000 cps |
| Grinding Media | 0.1 – 1.2mm Zirconia Beads |
| Grinding Structure | Pin-Type / Turbine Rotor |
| Separation System | Dynamic / Static Screen Discharge |
| Cooling System | 4-in-1 Integrated Cooling |
| Seal Type | Double Mechanical Seal |
Why Choose Our Vertical Nano Sand Mill?
Choosing the right grinding equipment isn’t only about achieving smaller particles.
It’s about achieving:
✓ Consistent product quality
✓ Higher production efficiency
✓ Better temperature control
✓ Reduced maintenance requirements
✓ Longer equipment lifespan
✓ Reliable nano-scale processing performance
For manufacturers seeking stable, high-quality grinding results across a wide range of advanced materials, the Vertical Nano Sand Mill provides a proven and efficient solution.
Conclusion
As industries continue demanding finer particles and higher product performance, advanced grinding technology becomes increasingly important. The Vertical Nano Sand Mill combines ultra-fine grinding capability, efficient cooling, reliable sealing, and flexible processing options to help manufacturers produce better products with greater consistency and efficiency. Whether you’re working with lithium battery materials, nano pigments, electronic pastes, or specialty chemicals, it offers the precision and reliability required for modern production environments.
