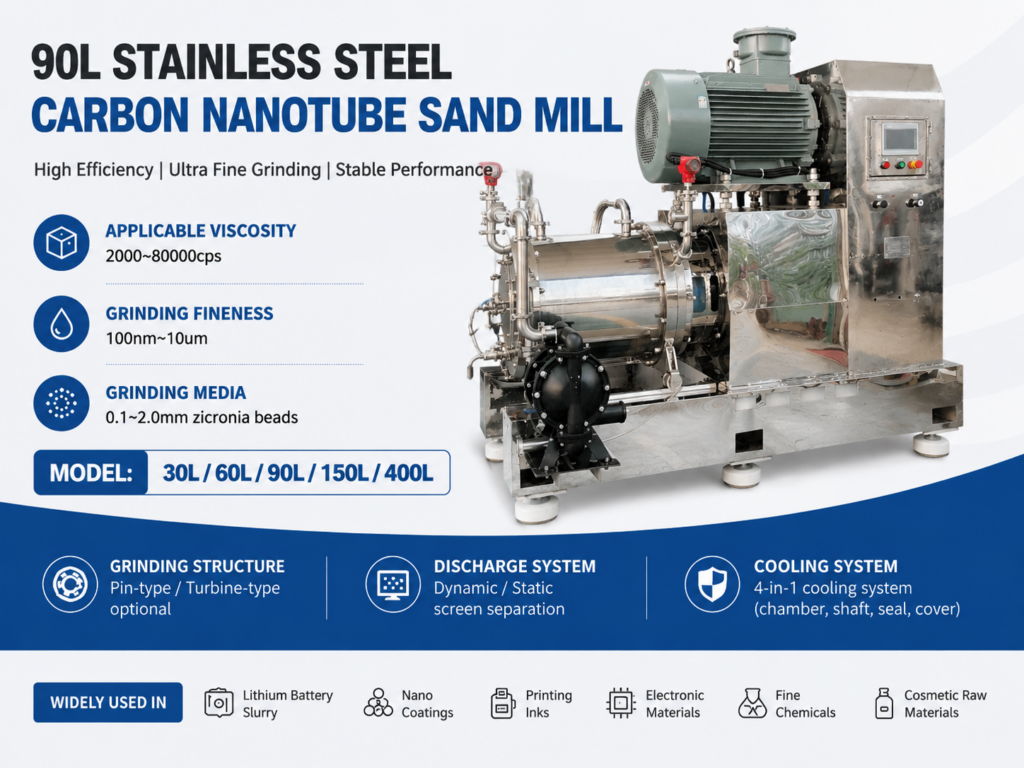

H1: 90L Stainless Steel Carbon Nanotube Sand Mill (Horizontal Type)
H2: Overview of LECJX 90L CNT Sand Mill
The Musehn Machinery 90L Stainless Steel Carbon Nanotube Sand Mill is an industrial-grade horizontal wet grinding mill specifically engineered for the dispersion of carbon nanotubes (CNTs), lithium battery slurries, and high-viscosity functional materials. With its premium stainless steel exterior and advanced inner rotor design, it delivers high-shear energy to achieve sub-micron and nano-level particle size distribution efficiency.
H2: Technical Advantages & Core Features
- High-Viscosity Adaptability (2,000 – 80,000 cps)Specially optimized for high-solid-content and high-viscosity materials, ensuring smooth feeding and continuous processing without clogging.
- Flexible Grinding Structures (Pin / Turbine)Supports both Pin-type (for high energy density and aggressive shear) and Turbine-type (for gentle, high-flow dispersion) rotors to match different material characteristics.
- Advanced 4-in-1 Cooling SystemTo prevent thermal degradation of sensitive battery materials, the mill integrates a comprehensive cooling network: Chamber cooling + Cover cooling + Shaft cooling + Mechanical seal cooling.
- Zero Metal Contamination OptionsEquipped with a reliable Silicon Carbide (SiC) dual mechanical seal. The contact parts can be customized with Zirconia (ZrO2), Silicon Carbide (SiC), or Polyurethane (PU) to meet the strict iron-free requirements of the battery industry.
- Efficient Material SeparationUtilizes advanced Dynamic or Static Screen Separation Systems, allowing the use of ultra-fine grinding media (0.1mm to 2.0mm zirconia beads) without bead leakage or blocking.
H2: Technical Parameters & Specifications
| Technical Items | Specifications & Data |
| Brand | Musehn Machinery (沐森机械) |
| Machine Type | Horizontal Bead Mill / Sand Mill |
| Chamber Volume | 90 Liters (Available Models: 30L / 60L / 90L / 150L / 400L) |
| Grinding Structure | Pin Type / Turbine Type (Optional) |
| Finishing Fineness | $100\text{ nm} – 10\ \mu\text{m}$ |
| Applicable Viscosity | 2,000 – 80,000 cps |
| Grinding Media Size | 0.1 mm – 2.0 mm Zirconia Beads |
| Sealing System | Dual Mechanical Seal (Silicon Carbide) |
| Material of Contact Parts | Optional: Zirconia, Silicon Carbide, Polyurethane |
| Cooling Method | 4-in-1 Cooling (Chamber, Cover, Shaft, Seal) |
| Discharge System | Dynamic / Static Screen Separation |
H2: Why Choose Musehn Machinery Horizontal Sand Mill Technology?
Compared to traditional vertical bead mills, the Musehn Machinery horizontal structure ensures a uniform bead distribution throughout the chamber, avoiding bead accumulation at the bottom. This results in higher grinding efficiency, narrower particle size distribution, and significantly lower energy consumption during large-scale industrial manufacturing.
📢 Looking for a Scalable Nano Grinding Solution?
Musehn Machinery provides full-scale industrial capabilities from 30L up to 400L. [Contact Our Engineers for a Free Quote & Technical Proposal]
H2: FAQ (SEO & Schema Ready)
Q1: What is the main advantage of the Musehn Machinery 90L sand mill for CNT processing?
The combination of a powerful pin/turbine rotor and the 4-in-1 cooling system prevents carbon nanotubes from re-agglomerating due to high heat, ensuring stable dispersion down to 100nm without degrading the material structure.
Q2: How does the mill handle high-viscosity materials up to 80,000 cps?
Our horizontal design, coupled with specialized dynamic/static separation screens and robust dual mechanical seals, provides strong driving force and smooth discharge for high-viscosity slurries without clogging.
Q3: Can this machine guarantee zero metal contamination for lithium battery materials?
Yes. While the exterior is stainless steel, all internal contact parts (rotor, chamber liner, and separation system) can be customized with high-purity Zirconia, Silicon Carbide, or Polyurethane.
Q4: What other capacities are available if 90L is too large or small?
Musehn Machinery offers a complete scaled series including 30L and 60L for pilot-plant scale, and 150L or 400L for large-scale mass industrial production.
