Whether you are processing high-viscosity slurries or looking to scale up your fine chemical production, understanding the capabilities of an industrial-grade nano sand mill is key to optimizing your production line.

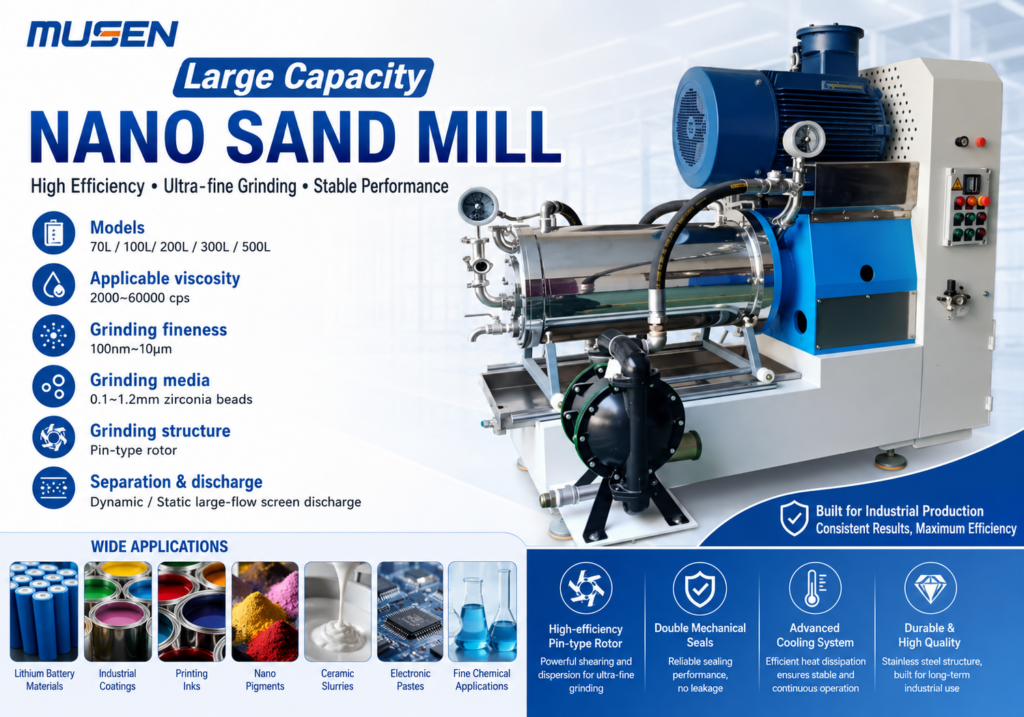

Technical Specifications: 70L–500L Large Capacity Nano Sand Mill
Engineered specifically for high-volume industrial production, our large-capacity horizontal sand mills balance extreme power with meticulous control. Below are the core parameters of our flagship series:
| Parameter | Specification |
| Available Models | 70L / 100L / 200L / 300L / 500L |
| Grinding Fineness | $100\text{ nm} \sim 10\ \mu\text{m}$ (Down to sub-micron and nanoscale) |
| Applicable Viscosity Range | 2,000 ~ 60,000 cps |
| Grinding Media Compatibility | $0.1 \sim 1.2\text{ mm}$ zirconia beads |
| Internal Grinding Structure | High-efficiency Pin-type rotor |
| Separation & Discharge System | Dynamic / Static large-flow screen discharge |
Core Advantages of the Horizontal Nano Sand Mill
1. High-Efficiency Pin-Type Rotor Structure
Unlike traditional disk mills, the pin-type horizontal sand mill inputs high energy density directly into the grinding media. The intensive shearing and impact forces ensure that materials are rapidly ground to the target nanoscale distribution in a shorter timeframe, drastically boosting throughput.
2. Broad Viscosity Handling ($2,000 \sim 60,000\text{ cps}$)
High-viscosity materials often pose a challenge for standard wet grinding equipment due to heat buildup and clogging. This series is uniquely optimized to maintain smooth, continuous operation even when dealing with thick, paste-like industrial slurries.
3. Advanced Separation & Large-Flow Discharge
Equipped with a choice of dynamic or static large-flow screen discharge systems, the mill prevents bead leakage and clogging. This design allows for the seamless use of ultra-fine grinding media ($0.1\text{ mm}$ zirconia beads), which is essential for reaching true nano-level outputs.
4. Superior Thermal Control & Reliable Sealing
To protect heat-sensitive materials, the machine features an advanced cooling system alongside robust double mechanical seals. This setup ensures excellent heat dissipation, stable internal pressure, and zero contamination leakage during extended production runs.
Industrial Applications
The versatility of the Horizontal Nano Sand Mill makes it an indispensable asset across various high-tech sectors:
- Lithium Battery Materials: Delivers uniform dispersion for cathode/anode materials and separators.
- Industrial Coatings & Printing Inks: Achieves brilliant color development, high gloss, and optimal transparency.
- Nano Pigments & Ceramic Slurries: Ensures tight particle size distribution without agglomeration.
- Electronic Pastes: Meets the rigorous purity and fineness standards required for semiconductor and electronic components.
About Musen Machinery: Your Trusted Wet Grinding Partner
Founded in 1998, Musen Machinery has dedicated over 20 years to data accumulation, technological innovation, and the refinement of intelligent integrated equipment. As a premier manufacturer based in Dongguan, China, we combine a state-of-the-art production base, a dedicated R&D center, and an experienced global sales team to provide professional system solutions for industrial customers worldwide.
Why Choose Musen Machinery?
- German-Style Craftsmanship: We adopt rigorous engineering standards to continuously develop, upgrade, and customize our equipment, ensuring structural longevity and peak operational stability.
- Unmatched Precision: Our capabilities speak for themselves—the grinding fineness of $\text{CaCO}_3$ processed by our machinery can reach $D_{97} \le 70\text{ nm}$, verified by authoritative third-party Malvern laser particle size analyzers or Transmission Electron Microscopy (TEM).
- Full-Scale System Solutions: We specialize deeply in wet grinding and dispersion technology. Musen provides complete, seamless sets of chemical production equipment—encompassing mixing, grinding, filtering, and automated filling—offering an ideal transition from laboratory-scale testing to massive, turnkey production lines.
Looking to elevate your dispersion efficiency? Contact the Musen Machinery technical team today to get a tailored quote and find the perfect horizontal nano sand mill configuration for your production goals.
