30L Disc Sand Mill

30L Disc Sand Mill

MOQ: 1 Pieces
Delivery time: 30 Day
1. Simple appearance, compact structure, and convenient operation. 2. Lip seal, single mechanical seal, double mechanical seal; shaft seals available in various materials. 3. Compatible with corrosive fluids via mechanical seal cooling liquid to eliminate contamination. 4. Pressure automatic protection for stable chamber pressure; full-position electrical protection, explosion-proof motor, and anti-static V-drive belt.
Contact Us Inquiry

Product Details

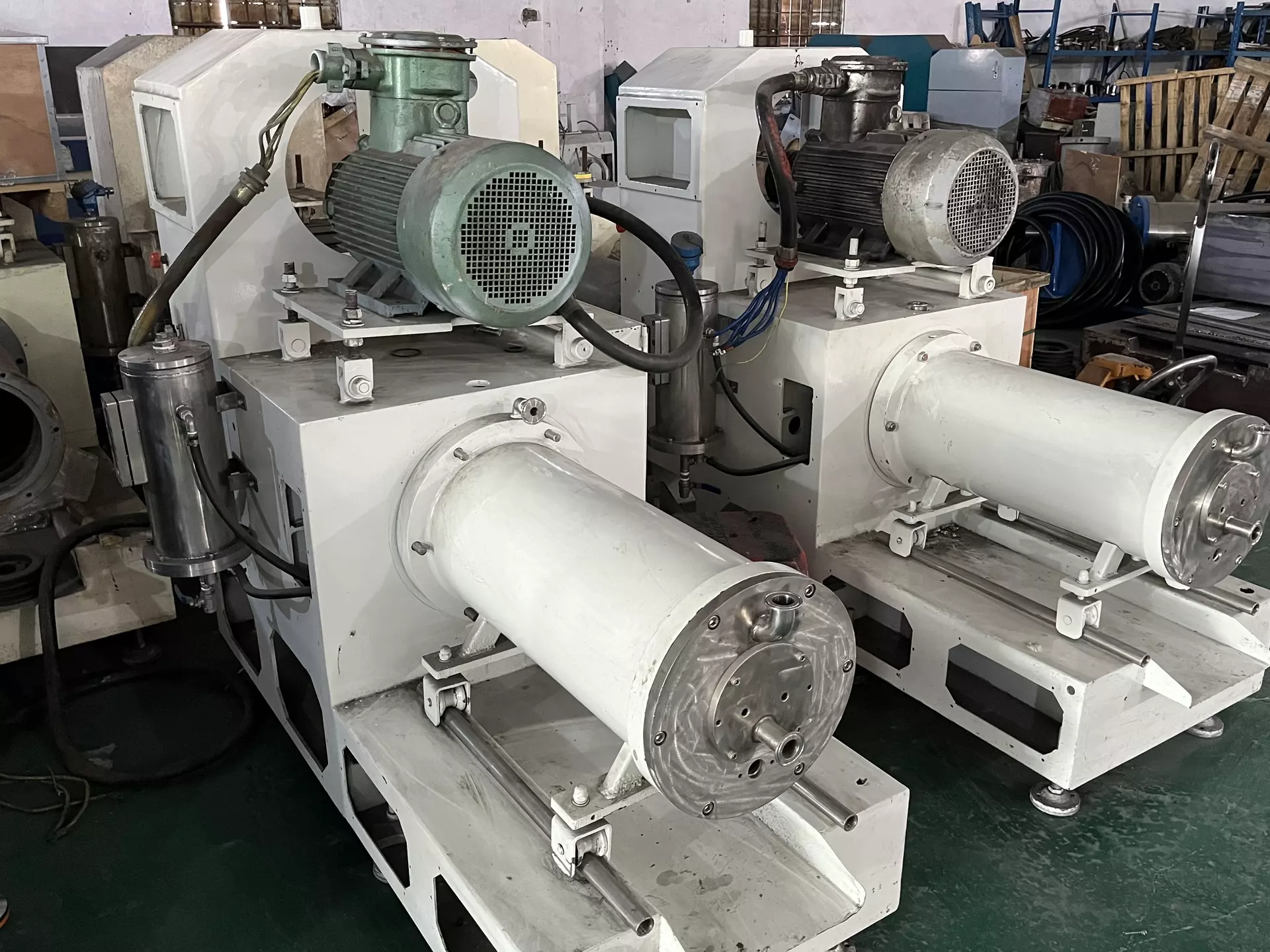

This 30L disc type sand mill is a high-efficiency wet grinding and dispersing machine designed for precision micron-level grinding. It delivers stable, uniform particle size reduction and excellent dispersion performance, widely used in ink, paint, coating, spray paint and related chemical industries. With optimized disc structure and reliable operation, it ensures consistent fineness, high output and easy maintenance, making it an ideal production equipment for fine chemical processing.

Model Chamber Volume (L) Motor Power (KW) Production (kg/H) Medium Size Beads Filling (%) Weight (kg) Measurement (LxWxH mm)
LC-15L 15 15 60-600 0.4-2.0 56-65 680 1190*760*1600
LC-20L 20 18.5 100-800 0.4-2.0 56-65 750 1350*800*1600
LC-30L 30 22 120-1000 0.4-2.0 56-65 880 1600*900*1600
LC-40L 40 30 140-1200 0.4-2.0 56-65 1280 1500*900*1800
LC-50L 50 37 180-1500 0.4-2.0 56-65 1390 1700*900*1800
LC-60L 60 45 200-1700 0.4-2.0 56-65 1460 1900*900*1800
LC-80L 80 55 220-1900 0.4-2.0 56-65 2200 2000*1000*1900
LC-100L 100 75 250-2000 0.4-2.0 56-65 2900 2300*1000*1600
LC-150L 150 75 350-2500 0.4-2.0 56-65 3600 2500*1300*1600
