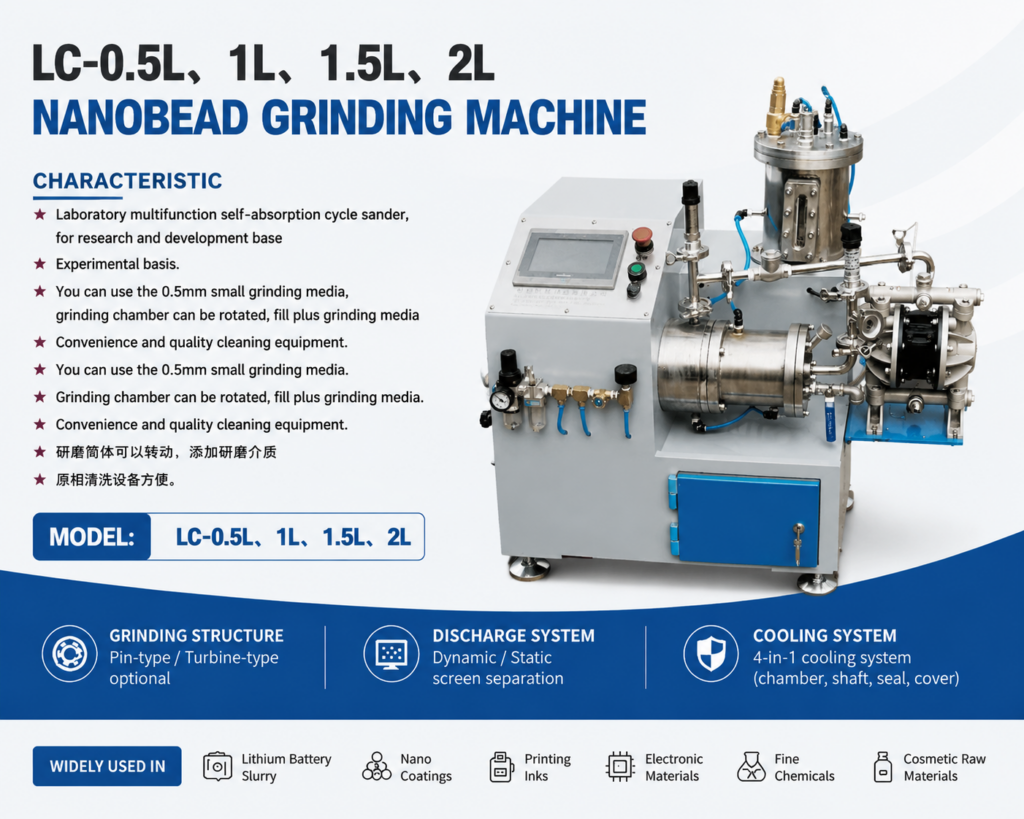

H1:Lab Scale Nano Horizontal Sand Mill (0.3L – 2.0L) for R&D
H2: Equipment Overview
The Musehn Machinery Lab Scale Nano Horizontal Sand Mill is a dedicated wet grinding unit built for formulation research, basic laboratory experiments, and pilot-scale development. Available in compact volumes from 0.3L to 2.0L, this self-priming circulating bead mill delivers precise and scalable grinding data, allowing engineers to transition smoothly from lab testing to industrial mass production.
H2: Core Technical Features
Rotatable Chamber for Rapid Cleaning
Cross-contamination between batches is a critical issue in lab testing. Our rotatable chamber design allows operators to easily tilt the cylinder. This simplifies the loading and unloading of grinding media and ensures thorough, dead-corner-free cleaning.
Integrated Self-Priming Circulation
The equipment features a built-in multi-functional self-priming system. It draws and circulates the slurry autonomously, completely eliminating the need for bulky external feeding pumps. This saves limited bench space and streamlines the operational workflow.
0.5mm Micro Media Compatibility
Engineered to achieve true nano-level dispersion, the internal separation system securely operates with micro grinding beads as small as 0.5mm. This guarantees the high shear force required for advanced sub-micron formulations.
Reliable Data for Industrial Scale-Up
The internal fluid dynamics and shear rates of this lab unit strictly replicate our industrial-sized sand mills. The grinding parameters (time, speed, temperature) recorded here serve as a reliable baseline for factory-level production.
H2: Technical Specifications
Technical Items
Specifications & Data
Brand
Musehn Machinery
Machine Type
Lab Scale Horizontal Sand Mill (Bead Mill)
Available Chamber Volumes
0.3L / 0.5L (LC-0.5) / 1.0L / 1.5L / 2.0L
Operation Mode
Self-priming circulating grinding
Minimum Media Size
0.5mm (Zirconia beads recommended)
Chamber Design
Rotatable / Tiltable structure
Target Application
R&D, Formulation testing, Pilot production
Material Options
Wear-resistant contact parts (Customizable)
H2: Target R&D Applications
This laboratory bead mill supports formulation development across multiple strict-requirement industries:
- Energy Storage: Cathode/anode battery slurries, carbon nanotube (CNT) conductive pastes.
- Coatings & Inks: Automotive refinish paints, digital inkjet inks, UV-curable inks.
- Fine Chemicals & Advanced Materials: Agrochemicals, cosmetic raw materials, electronic ceramics, and semiconductor slurries.
Need Accurate Grinding Data for Your Next Formulation? [Contact Musehn Machinery’s engineering team for technical specifications and a lab equipment quote]
H2: FAQ (SEO + Schema Ready)
Q1: What chamber volumes are available for this lab mill?
Musehn Machinery offers a flexible range of capacities for laboratory requirements, including 0.3L, 0.5L, 1.0L, 1.5L, and 2.0L models.
Q2: Why is the rotatable chamber necessary for R&D?
Lab technicians frequently switch material formulations. The rotatable design allows the chamber to be tilted, making it much easier to discharge slurry, empty the beads, and clean the interior thoroughly to prevent cross-contamination.
Q3: Does this equipment require an external feeding pump?
No. This lab model is built with a multi-functional self-priming circulation system. It automatically draws and circulates the material, which saves lab space and reduces equipment setup time.
Q4: What is the minimum size of grinding media supported?
The internal dynamic separation system is precision-machined to safely handle micro zirconia beads down to 0.5mm for effective nano-dispersion.
